HDSS2-2-V2.0
100 pcs
16.700 usd/pcs
Product Description:

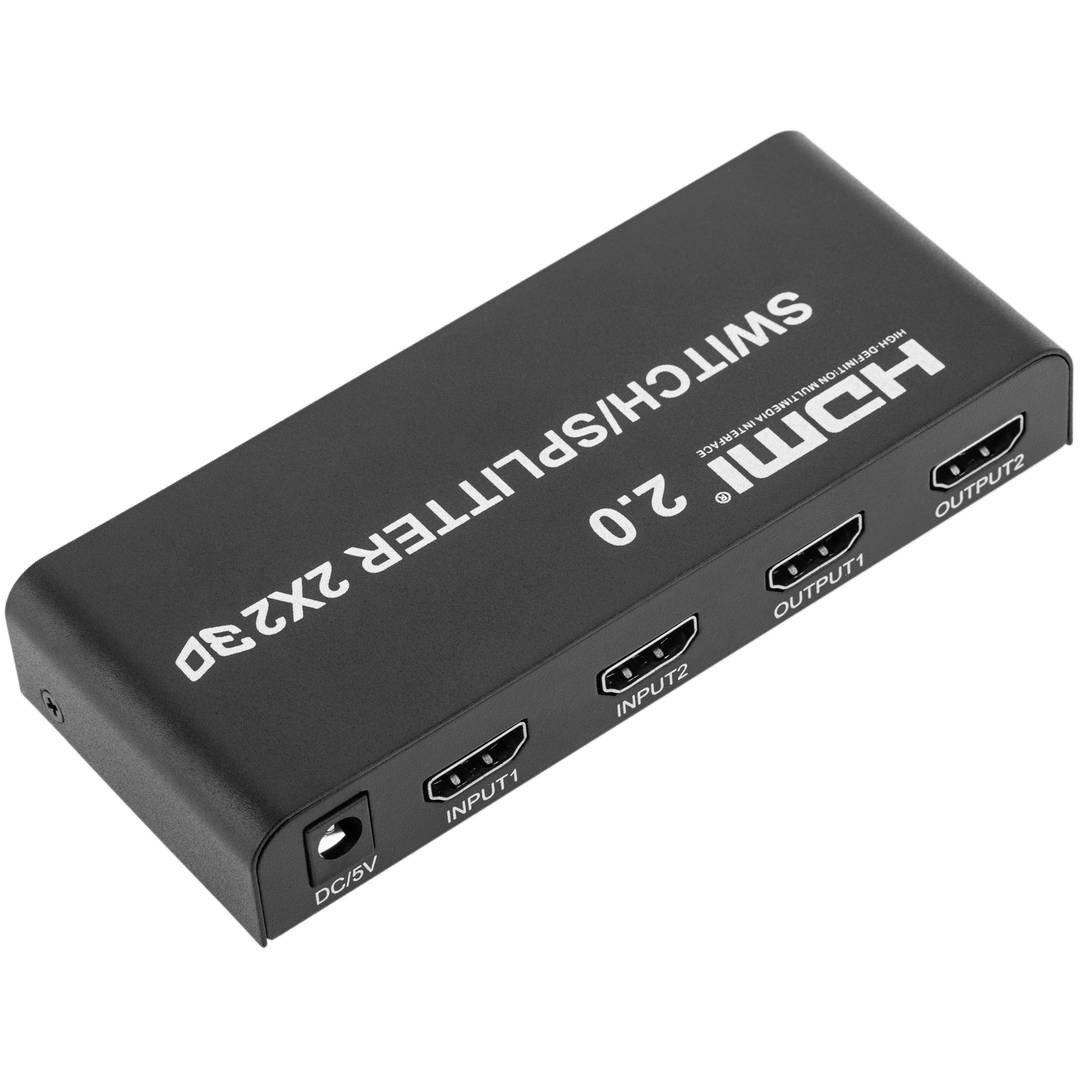

2 input ports and 2 output ports HDMI multiplier, selector and amplifier. Starting with two HDMI input signals, this device multiplies the selected signal into two identical outputs. This multiplier has the ability to store data (buffering), amplify it and distribute it through its output ports. It also amplifies the HDMI signal up to a cable length of up to 40 m.
Product Specifications:
HDMI 2.0 port selector. It has two female HDMI input ports of which one of them is selected as the active port by means of a button on the front panel.
HDMI 2.0 port multiplier. It replicates the selected signal (or active signal) on the two female HDMI output ports.
The output ports are fully synchronized and replicate the same signal from the active input port.
Signal amplifier up to 40 m that varies according to the quality of the HDMI cable used and the environment. Supports a maximum of 20 m of cable at the input and 10 m of cable at the outputs.
Possibility of cascading two or more multipliers to expand the system and obtain greater cable distances from the source of the HDMI signal (additional 15 m).
Supported resolution: 3840x2160 and 2160p.
HDMI 1.4a, 1.3b, HDCP 1.0, HDCP 1.1 and HDCP 1.2 compliant.
Supported VGA video formats: 640x480, 800x600, 1024x768, 1920x1200 and 3840x2160.
Supported DTV / HDTV video formats: 480i, 576i, 480p, 576p, 720p, 1080i and 1080p, 2160p and 2160i.
Working frequency: Up to 600 MHz.

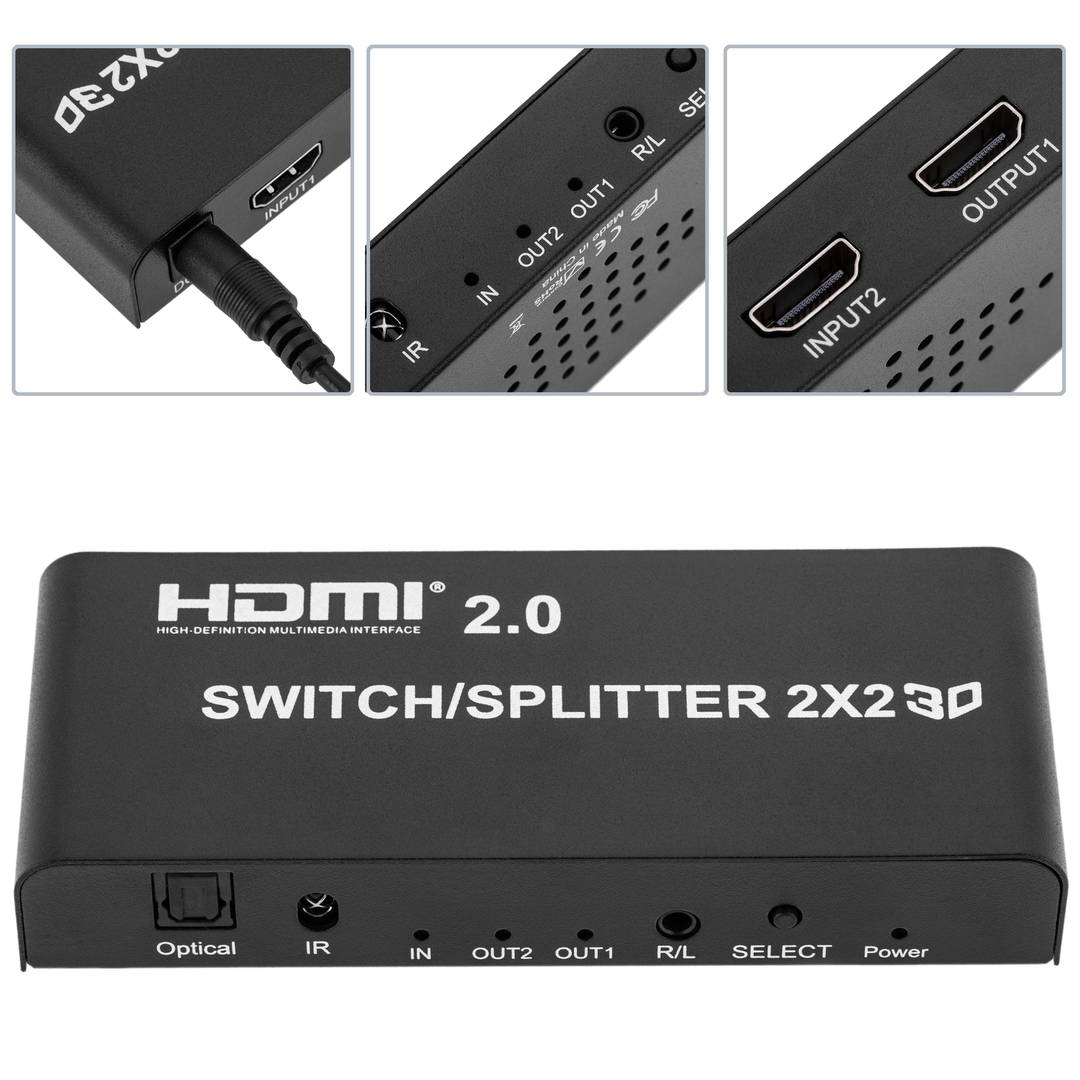

It has an input selector and indicator LEDs on the front panel.

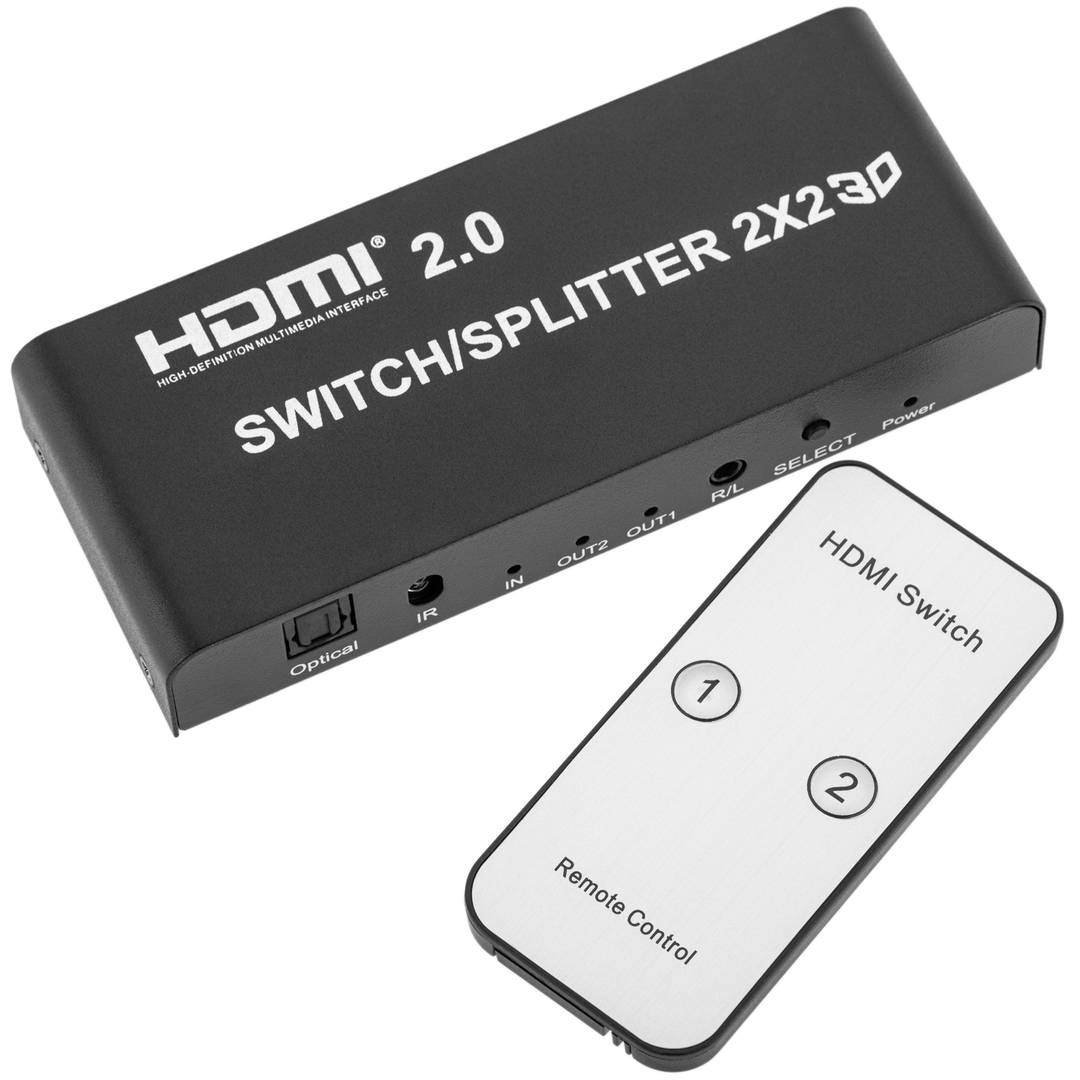

Remote control with two buttons is supplied. One for each port of entry.

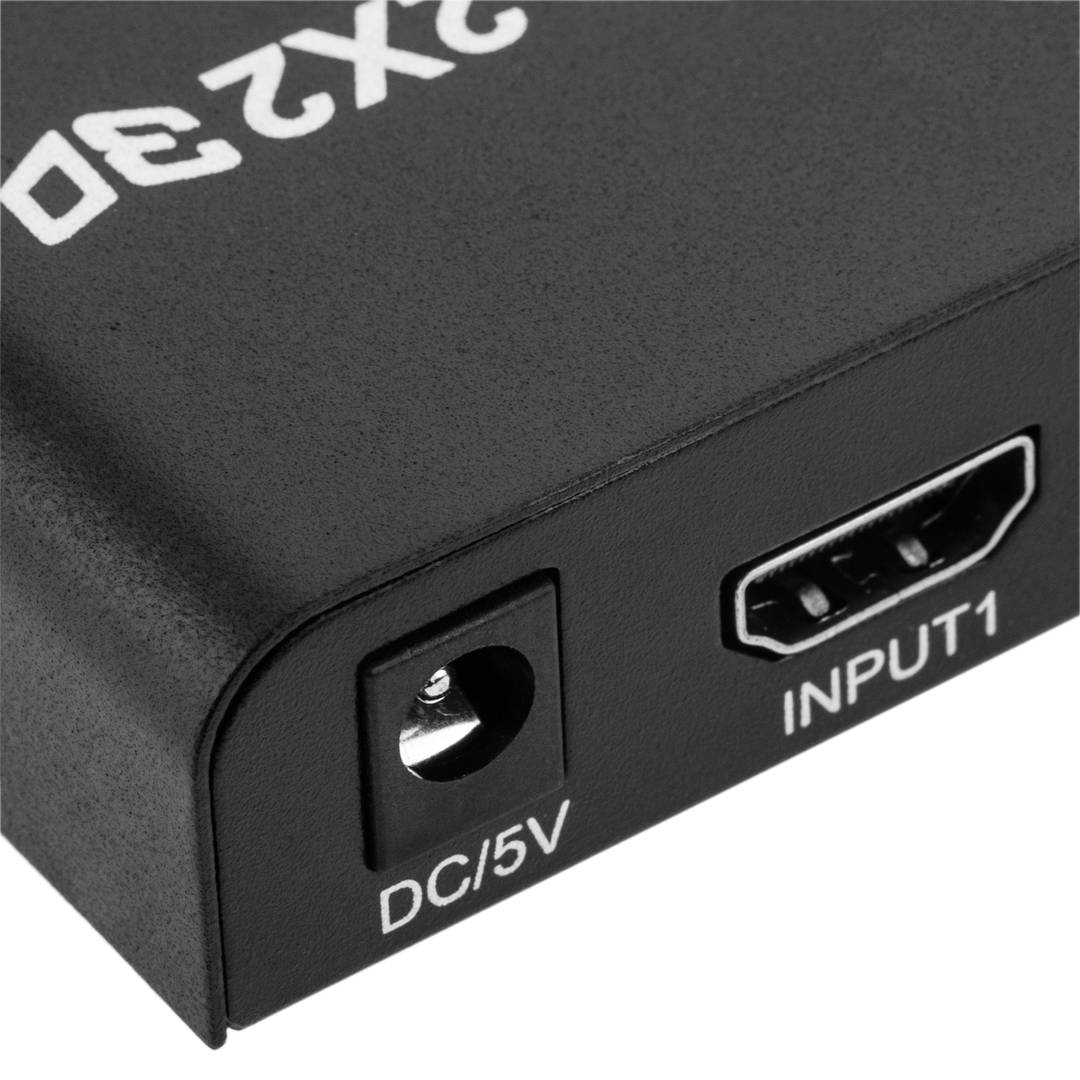

Requires external 5 VDC power supply (included).
Compact size: 127 x 52 x 22mm.
Product Description:
2 input ports and 2 output ports HDMI multiplier, selector and amplifier. Starting with two HDMI input signals, this device multiplies the selected signal into two identical outputs. This multiplier has the ability to store data (buffering), amplify it and distribute it through its output ports. It also amplifies the HDMI signal up to a cable length of up to 40 m.
Product Specifications:
HDMI 2.0 port selector. It has two female HDMI input ports of which one of them is selected as the active port by means of a button on the front panel.
HDMI 2.0 port multiplier. It replicates the selected signal (or active signal) on the two female HDMI output ports.
The output ports are fully synchronized and replicate the same signal from the active input port.
Signal amplifier up to 40 m that varies according to the quality of the HDMI cable used and the environment. Supports a maximum of 20 m of cable at the input and 10 m of cable at the outputs.
Possibility of cascading two or more multipliers to expand the system and obtain greater cable distances from the source of the HDMI signal (additional 15 m).
Supported resolution: 3840x2160 and 2160p.
HDMI 1.4a, 1.3b, HDCP 1.0, HDCP 1.1 and HDCP 1.2 compliant.
Supported VGA video formats: 640x480, 800x600, 1024x768, 1920x1200 and 3840x2160.
Supported DTV / HDTV video formats: 480i, 576i, 480p, 576p, 720p, 1080i and 1080p, 2160p and 2160i.
Working frequency: Up to 600 MHz.
It has an input selector and indicator LEDs on the front panel.
Remote control with two buttons is supplied. One for each port of entry.
Requires external 5 VDC power supply (included).
Compact size: 127 x 52 x 22mm.
